VG-4513CA, VG-4513CB Datasheet - EPSON

VG-4513CA VOLTAGE-CONTROLLED CRYSTAL OSCILLATOR

Crystal oscillator VOLTAGE -CONTROLLED CRYSTAL OSCILLATOR (VCXO) OUTPUT : LV-PECL Product Number (Please contact us) VG-4513CB: X1G004151xxxxxx VG-4513CA: X1G004141xxxxxx VG-4513CB VG-4513CA Frequency range Supply voltage Absolute pull range Function Output VG-4513CB : 100 MHz to 250 MHz (5.0 × 3.2 × 1.3 mm) : 3.3 V : ±30 × 10-6Min,±50 × 10-6Min,±100 × 10-6Min Actual size : Output Enable(OE) VG-4513CB VG-4513CA Active High or Low : LV-PE.

VG-4513CB-EPSON.pdf

This datasheet PDF includes multiple part numbers: VG-4513CA, VG-4513CB. Please refer to the document for exact specifications by model.

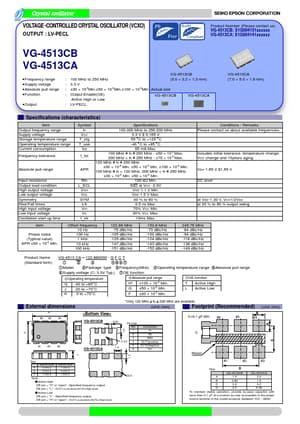

VG-4513CA Datasheet Preview Page 2

Datasheet Details

Part number:

VG-4513CA, VG-4513CB

Manufacturer:

EPSON

File Size:

413.62 KB

Description:

Voltage-controlled crystal oscillator.

Note:

This datasheet PDF includes multiple part numbers: VG-4513CA, VG-4513CB.
Please refer to the document for exact specifications by model.
