AD-PLCC44-A - 40-pin PLCC to 40-pin DIL Package Adaptor

Product Overview

Part number	AD-PLCC44-A
Manufacturer	EQUINOX
File Size	117.71 KB
Description	40-pin PLCC to 40-pin DIL Package Adaptor
Datasheet	AD-PLCC44-A Datasheet

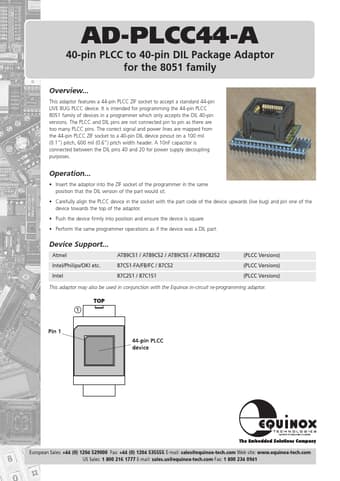

Additional preview pages of the AD-PLCC44-A datasheet.

a 44-pin PLCC ZIF socket to accept a standard 44-pin LIVE BUG PLCC device. It is intended for programming the 44-pin PLCC 8051 family of devices in a programmer which only accepts the DIL 40-pin versions. The PLCC and DIL pins are not connected pin to pin as there are too many PLCC pins. The correct signal and power lines are mapped from the 44-pin PLCC ZIF socket to a 40-pin DIL device pinout on a 100 mil (0.1”) pitch, 600 mil (0.6”) pitch width header. A 10nF capacitor is connected between the.
