AD22654B - 3-Vrms Cap-Less Line Driver

Description

The AD22654B is a 3-Vrms cap-less stereo line driver.

The device is ideal for single supply electronics.

Features

  • Operation Voltage: 3V to 5.5V.
  • Cap-less Output - Eliminates Output Capacitors - Improves Low Frequency Response - Reduces POP/Clicks.
  • Low Noise and THD at 2.5k Load - SNR > 102dB - Typical Vn < 12uVrms - THD+N < 0.02%.
  • Maximum Output Voltage Swing into 2.5k Load - 2Vrms at 3.3V Supply Voltage - 3Vrms at 5V Supply Voltage.
  • Single-ended Input Directly.
  • External Gain Setting from 1V/V to 10V/V.
  • Fast Start-up Time : 2ms.
  • Integrated De-Pop Control.
  • Extern.

📥 Download Datasheet

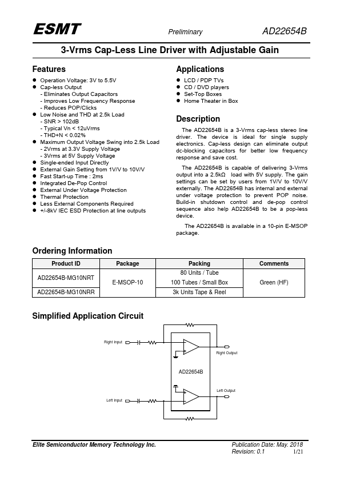

Datasheet preview – AD22654B

Datasheet Details

Part number AD22654B
Manufacturer ESMT
File Size 596.13 KB
Description 3-Vrms Cap-Less Line Driver
Datasheet download datasheet AD22654B Datasheet
