AD52058C - 2x15W Stereo Class-D Audio Amplifier

AD52058C Description

ESMT AD52058C 2x15WStereo Class-D Audio Amplifier with Power Limit .
The AD52058C is a high efficiency stereo class-D audio amplifier with adjustable power limit function.

AD52058C Features

* Single supply voltage 4.5V ~ 14.4V for loudspeaker driver Built-in LDO output 5V for others
* Loudspeaker power from 12V supply BTL Mode: 8W/CH into 8 @1% THD+N BTL Mode: 10W/CH into 6 @

AD52058C Applications

* TV audio
* Boom-Box
* Powered speaker
* Monitors

📥 Download Datasheet

Preview of AD52058C PDF

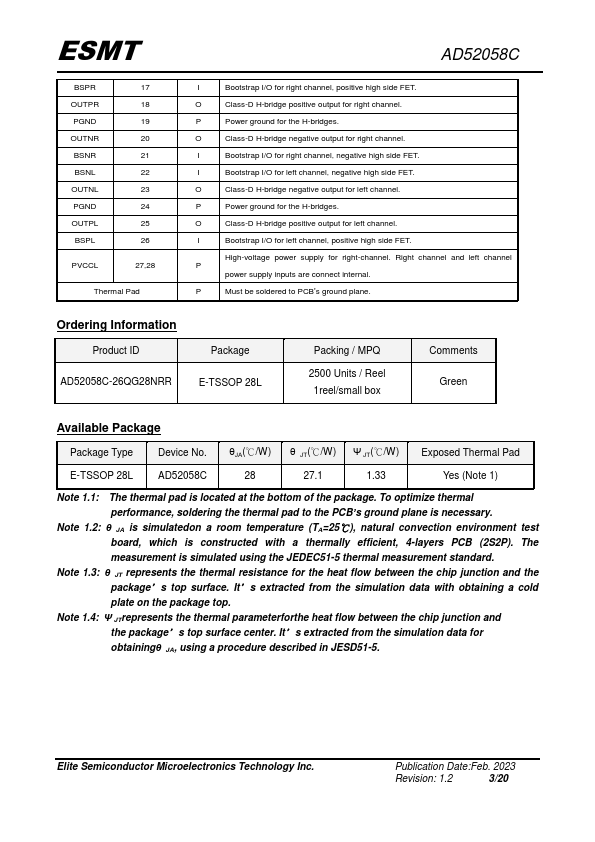

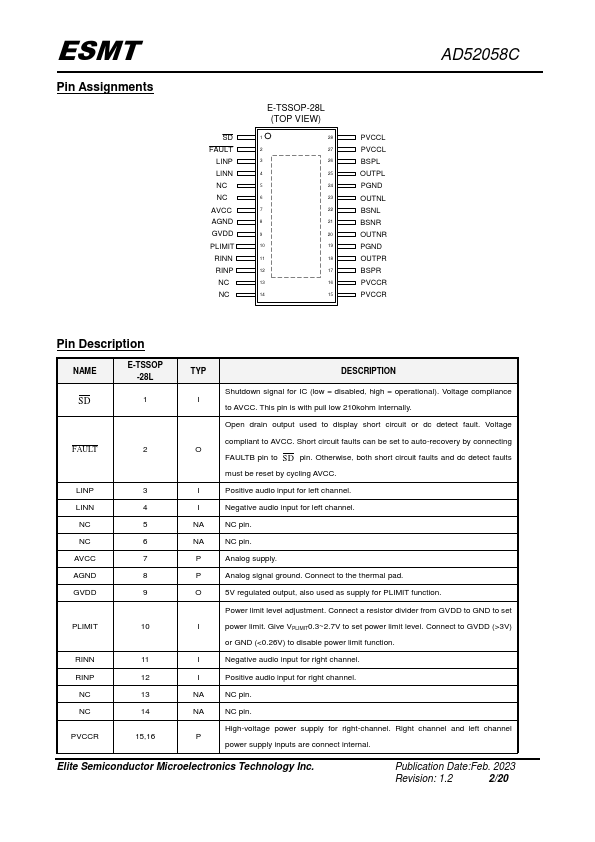

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AD52058C
Manufacturer
ESMT
File Size
1.20 MB
Datasheet
AD52058C-ESMT.pdf
Description
2x15W Stereo Class-D Audio Amplifier
