AD82129 Datasheet PDF - ESMT Mono Digital Audio Amplifier Specs

AD82129 - Mono Digital Audio Amplifier

Datasheet Summary

Description

AD82129 is a digital audio amplifier capable of driving 25W (BTL) each to a pair of 8Ω load speaker and 50W (PBTL) to a 4Ω load speaker operating at 24V supply without external heat-sink or fan requirement with play music.

Features

16/18/20/24-bits input with I2S, Left-alignment, Right-alignment and TDM data format.
PSNR & DR(A-weighting) Loudspeaker: 107dB (PSNR), 108dB (DR)@24V.
Multiple sampling frequencies (Fs) 8kHz, 16kHz, 32kHz/44.1kHz/48kHz and 64kHz/88.2kHz/96kHz.
System clock = 64x, 128x, 192x, 256x, 384x, 512x, 576x, 768x, 1024x Fs MCLK system: 256x~4096x Fs for 8kHz 128x~2048x Fs for 16kHz 64x~1024x Fs for 32kHz/44.1kHz/48kHz 64x~512x Fs for 64kHz/88.2kHz/96kHz BCLK system: 64x Fs for 32kHz/.

Datasheet Details

Part number	AD82129
Manufacturer	ESMT
File Size	2.47 MB
Description	Mono Digital Audio Amplifier
Datasheet	AD82129 Datasheet
Additional preview pages of the AD82129 datasheet.

📁 Similar Datasheet

AD8212 - High Voltage Current Shunt Monitor (Analog Devices)

AD8210 - High-Side Bi-directional Current-Shunt Monitor (Analog Devices)

AD8211 - High Voltage Current Shunt Monitor (Analog Devices)

AD8213 - Dual High Voltage Current Shunt Monitor (Analog Devices)

AD8214 - High Voltage Current Shunt Comparator (Analog Devices)

AD8215 - Current Shunt Monitor (Analog Devices)

AD8216 - Bidirectional 65 V Difference Amplifier (Analog Devices)

AD8217 - Zero-Drift Current Shunt Monitor (Analog Devices)

AD8218 - Bidirectional Current Shunt Monitor (Analog Devices)

AD8219 - Unidirectional Current Shunt Monitor (Analog Devices)

Full PDF Text Transcription

Click to expand full text

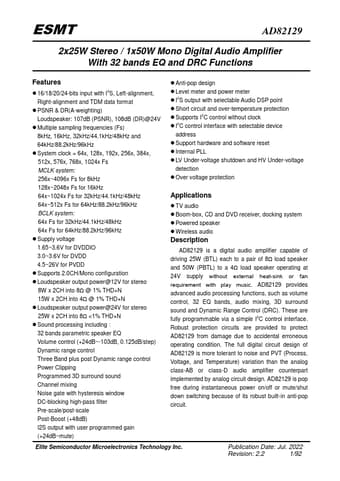

ESMT AD82129 2x25W Stereo / 1x50W Mono Digital Audio Amplifier With 32 bands EQ and DRC Functions Features  16/18/20/24-bits input with I2S, Left-alignment, Right-alignment and TDM data format  PSNR & DR(A-weighting) Loudspeaker: 107dB (PSNR), 108dB (DR)@24V  Multiple sampling frequencies (Fs) 8kHz, 16kHz, 32kHz/44.1kHz/48kHz and 64kHz/88.2kHz/96kHz  System clock = 64x, 128x, 192x, 256x, 384x, 512x, 576x, 768x, 1024x Fs MCLK system: 256x~4096x Fs for 8kHz 128x~2048x Fs for 16kHz 64x~1024x Fs for 32kHz/44.1kHz/48kHz 64x~512x Fs for 64kHz/88.2kHz/96kHz BCLK system: 64x Fs for 32kHz/44.1kHz/48kHz 64x Fs for 64kHz/88.2kHz/96kHz  Supply voltage 1.65~3.6V for DVDDIO 3.0~3.6V for DVDD 4.5~26V for PVDD  Supports 2.
