EMA2012

2.7W Mono Filter-less Class-D Audio Amplifier

ESMT

EMA2012 Features

* z Supply voltage range: 2.5 V to 5.5 V z Support single-ended or differential analog input z Low static operation current z Low shut-down current z Short power-on transient time z Internal pull-low resistor on shut-down pins z Short-circuit protection z Over-temperature protection z Default gain +18

EMA2012 General Description

The EMA2012 is a mono, filter-less class-D audio amplifier. Operating with 5.0V loudspeaker driver supply, it can deliver 2.7W output power into 4 Ω loudspeaker within 10% THD+N or 2.2W at 1% THD+N. The gain can be r.

EMA2012 Datasheet (408.40 KB)

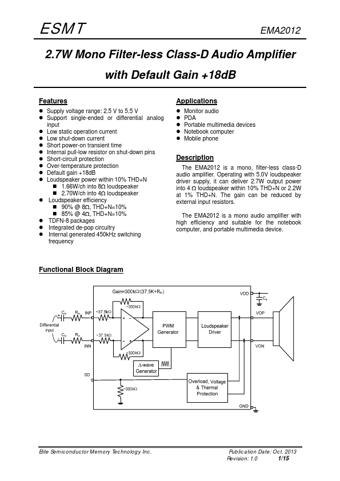

EMA2012 Datasheet Preview — Preview of EMA2012 PDF

Datasheet Details

Part number:

EMA2012

Manufacturer:

ESMT

File Size:

408.40 KB

Description:

2.7w mono filter-less class-d audio amplifier.
