ES6629 - Vibratto-II DVD Processor

Datasheet Summary

Description

The ES6629 VibrattoII processor is a highly integrated single-chip DVD solution that integrates read channel, ECC, Servo DSP, MCU, and MPEG-2 decoder that has a state-of-the-art 480p/576p progressive-scan video feature to provide brilliant and sharp, flicker-free video output, and S/PDIF input and

Features

  • Single-chip DVD processor incorporating all front-end and back-end functions.
  • Unified memory architecture.
  • Proven focusing, sledding, tracking, and CLV/CAV spindle servo control.
  • Proven ECC, EFM/EFM+ demodulation, and EDC circuit.
  • Built-in ADCs and DACs for servo control signals.
  • Direct interface to the ES6603 servo AFE chip.
  • Integrated NTSC/PAL encoder with pixel-adaptive de-interlacer and five 10-bit 54 MHz video DACs.

📥 Download Datasheet

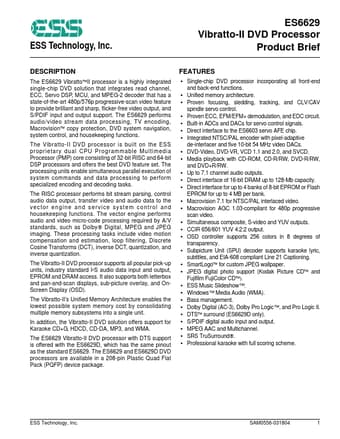

Datasheet preview – ES6629

Datasheet Details

Part number ES6629
Manufacturer ESS
File Size 53.43 KB
Description Vibratto-II DVD Processor
Datasheet download datasheet ES6629 Datasheet
Additional preview pages of the ES6629 datasheet.

📁 Similar Datasheet

  • ES6603 - Vibratto-II Automotive DVD Processor Product Brief (ESS Technology)
  • ES6688FA - Vibratto-II DVD Processor (ESS Technology Inc)
  • ES6698 - Vibratto-II DVD Processor (ESS Technology)
  • ES6008 - DVD Provessor Solutions (ESS Technology)
  • ES6018 - DVD Provessor Solutions (ESS Technology)
  • ES6028 - DVD Provessor Solutions (ESS Technology)
  • ES6038 - DVD Provessor Solutions (ESS Technology)
  • ES62UL256 - 32Kx8 Bit Ultra-Low Power Asynchronous Static RAM (ETC)
  • ES636 - True RMS-to-DC Converters (Cyrustek)
  • ES6420 - ES64 Series / Oscillator (Ecliptek)
Other Datasheets by ESS
  • ES6028 - Vibratto DVD Processor
  • ES6168A - Vibratto-S DVD Processor
  • ES6178 - Vibratto-S DVD Processor
  • ES6230 - Vibratto-II Automotive DVD Processor Product Brief
  • ES688 - 16-Bit Stereo VLSI

Full PDF Text Transcription

Click to expand full text
ESS Technology, Inc. ES6629 Vibratto-II DVD Processor Product Brief DESCRIPTION The ES6629 VibrattoII processor is a highly integrated single-chip DVD solution that integrates read channel, ECC, Servo DSP, MCU, and MPEG-2 decoder that has a state-of-the-art 480p/576p progressive-scan video feature to provide brilliant and sharp, flicker-free video output, and S/PDIF input and output support. The ES6629 performs audio/video stream data processing, TV encoding, Macrovision copy protection, DVD system navigation, system control, and housekeeping functions. The Vibratto-II DVD processor is built on the ESS proprietary dual CPU Programmable Multimedia Processor (PMP) core consisting of 32-bit RISC and 64-bit DSP processors and offers the best DVD feature set.
