ES9017 Datasheet - ESS

ES9017 - 32-bit High-Performance 8-Channel DAC

32-bit audio DAC with high dynamic range & ultra-low distortion Excellent dynamic range and low distortion Up to PCM 768kHz & native DSD512 7 predefined digital filters, optimized for latency or sound color TDM, I2S, LJ, RJ, DSD, DoP Configured by microcontroller or other I2C/SPI source, or pins thr

Analog Reinvented ES9017 32-bit High-Performance 8-Channel DAC Product Datasheet The ESS Sabre® ES9017 is a 32-bit 8 Channel digital-to-analog converter (DAC) that has the best cost/performance solution for receivers, personal audio devices, professional audio applications such as recording systems, mixer consoles and digital audio workstations (DAW) audio processors applications.

It was designed to complement the new generation of the world’s highest performing audio PRO DAC series.

The ES90

ES9017-ESS.pdf

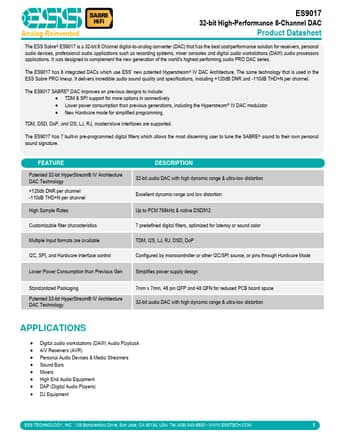

Preview of ES9017 PDF
ES9017 Datasheet Preview Page 2 ES9017 Datasheet Preview Page 3

Datasheet Details

Part number:

ES9017

Manufacturer:

ESS

File Size:

1.82 MB

Description:

32-bit high-performance 8-channel dac.
