SABRE9006A Premier8-Channel Audio DAC

o Unprecedented dynamic range and low distortion allowing true reproduction of audio as it is mastered at the recording studio o Unmatched audio clarity free from input clock jitter allowing simple system design and layout o Distortion free signal processing o Universal (e.g. DVD/SACD) audio playbac.

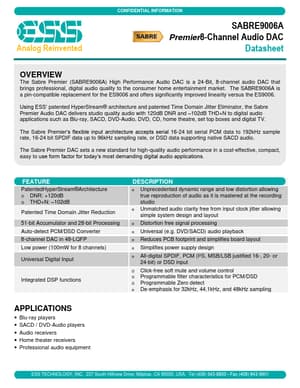

Analog Reinvented CONFIDENTIAL INFORMATION SABRE9006A Premier8-Channel Audio DAC Datasheet OVERVIEW The Sabre Premier (SABRE9006A) High Performance Audio DAC is a 24-Bit, 8-channel audio DAC that brings professional, digital audio quality to the consumer home entertainment market. The SABRE9006A is a pin-compatible replacement for the ES9006 and offers significantly improved linearity versus the ES9006. Using ESS’ patented HyperStream® architecture and patented Time Domain Jitter Eliminator, t.
