EST7502C - POWER SUPPLY SUPERVISOR

Description

The EST7502C is designed with a pulse-width-modulation control circuit and a complete power supervisor for use in the switched mode power supply .

It contains various functions, like under voltage protection (UVP), over voltage protection (OVP), power good output (PG) and ON/OFF control (REM).

📥 Download Datasheet

Datasheet Details

Part number EST7502C
Manufacturer EST
File Size 425.54 KB
Description POWER SUPPLY SUPERVISOR
Datasheet download datasheet EST7502C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
eST003 Tiny Controller-Based Speech Synthesizer ELAN Microelectronics
eST004 Tiny Controller-Based Speech Synthesizer ELAN Microelectronics
eST005 Tiny Controller-Based Speech Synthesizer ELAN Microelectronics
eST010 Tiny Controller-Based Speech Synthesizer ELAN Microelectronics
eST015 Tiny Controller-Based Speech Synthesizer ELAN Microelectronics

Other Datasheets by EST

Part Number Description
EST7502CS POWER SUPPLY SUPERVISOR
EST7502B PC Power Supply PWM
EST7610 PC Power Supply Supervisor
EST.5198 USB Charger Enhance IC
EST.5198B USB Charger Enhance IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

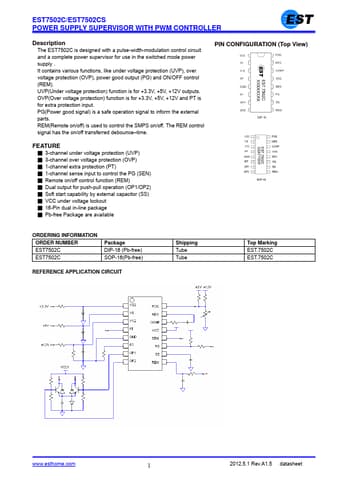

EST7502C/EST7502CS POWER SUPPLY SUPERVISOR WITH PWM CONTROLLER Description The EST7502C is designed with a pulse-width-modulation control circuit and a complete power supervisor for use in the switched mode power supply . It contains various functions, like under voltage protection (UVP), over voltage protection (OVP), power good output (PG) and ON/OFF control (REM). UVP(Under voltage protection) function is for +3.3V, +5V, +12V outputs. OVP(Over voltage protection) function is for +3.3V, +5V, +12V and PT is for extra protection input. PG(Power good signal) is a safe operation signal to inform the external parts. REM(Remote on/off) is used to control the SMPS on/off. The REM control signal has the on/off transferred debounce–time.
