ETA1483 Datasheet - ETA solutions

18V High Efficiency Synchronous Step-Down Converter

ETA1483 Features

* Wide Input Operating Range from 3.6V to 18V

* High Efficiency:

* Up to 90%at Light Load

* Up to 95% at Heavy Load

* Capable of Delivering 2A

* Input OVP at 20V

* No External Schottky Diode Needed

* Current Mode control

* 0.923V Reference for Low Output voltages

ETA1483 General Description

The ETA1483 is a wide input range, high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. Current mode PWM control allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing.

ETA1483 Datasheet (322.68 KB)

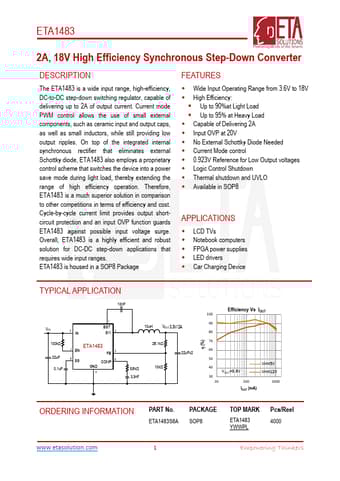

ETA1483 Datasheet Preview — Preview of ETA1483 PDF

Datasheet Details

Part number:

ETA1483

Manufacturer:

ETA solutions

File Size:

322.68 KB

Description:

18v high efficiency synchronous step-down converter.
