ETA1485 Datasheet - ETA solutions

18V High Efficiency Synchronous Step-Down Converter

ETA1485 Features

* Wide Input Operating Range from 3.6V to 18V

* High Efficiency:  Up to 90%at Light Load

* Capable of Delivering 3A

* No External Schottky Diode Needed

* Current Mode control

* 0.923V Reference for Low Output voltages

* Logic Control Shutdown

* Thermal shutdown and U

ETA1485 General Description

The ETA1485 is a wide input range, high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. Current mode PWM control allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing.

ETA1485 Datasheet (511.47 KB)

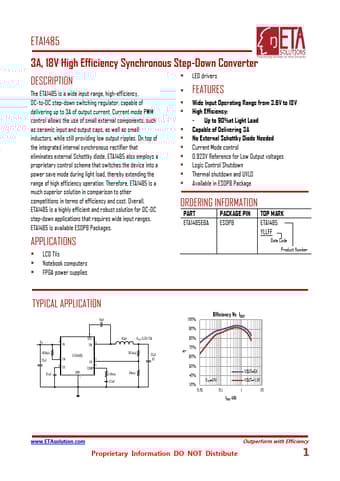

ETA1485 Datasheet Preview — Preview of ETA1485 PDF

Datasheet Details

Part number:

ETA1485

Manufacturer:

ETA solutions

File Size:

511.47 KB

Description:

18v high efficiency synchronous step-down converter.
