ETA1459 - I2C Controlled Output Synchronous Step-Down Converter

Datasheet Summary

Description

The ETA1459 is a wide input range, high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 2.5A of output current.

Its output can be dynamically controlled by I2C interface.

Features

  • I2C Dynamic Output Control.
  • Wide Input Operating Range from 4.2V to 18V.
  • High Efficiency:  Up to 90%at Light Load  Up to 95% at Heavy Load.
  • Capable of Delivering 2.5A.
  • Input OVP at 20V.
  • No External Schottky Diode Needed.
  • Thermal shutdown and UVLO.

📥 Download Datasheet

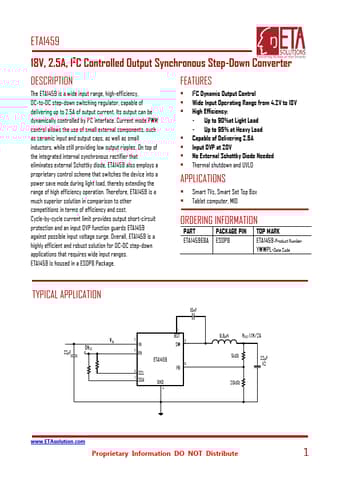

Datasheet preview – ETA1459

Datasheet Details

Part number ETA1459
Manufacturer ETA
File Size 293.27 KB
Description I2C Controlled Output Synchronous Step-Down Converter
Datasheet download datasheet ETA1459 Datasheet
Additional preview pages of the ETA1459 datasheet.

📁 Similar Datasheet

  • ETA1483 - 18V High Efficiency Synchronous Step-Down Converter (ETA solutions)
  • ETA1485 - 18V High Efficiency Synchronous Step-Down Converter (ETA solutions)
Other Datasheets by ETA
  • ETA1466 - High Efficiency Synchronous Step-Down Converter
  • ETA1467 - COT Synchronous Step-Down Converter
  • ETA1468 - COT Synchronous Step-Down Converter
  • ETA1469 - COT Synchronous Step-Down Converter
  • ETA1470 - High Efficiency Synchronous Step-Down Converter
  • ETA1471 - 28V/3A High Efficiency Synchronous Step-Down Converter
  • ETA1476 - High Efficiency Synchronous Step-Down Converter
  • ETA1477 - High Efficiency Synchronous Step-Down Converter

Full PDF Text Transcription

Click to expand full text
ETA1459 18V, 2.5A, I2C Controlled Output Synchronous Step-Down Converter DESCRIPTION The ETA1459 is a wide input range, high-efficiency, DC-to-DC step-down switching regulator, capable of delivering up to 2.5A of output current. Its output can be dynamically controlled by I2C interface. Current mode PWM control allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing low output ripples. On top of the integrated internal synchronous rectifier that eliminates external Schottky diode, ETA1459 also employs a proprietary control scheme that switches the device into a power save mode during light load, thereby extending the range of high efficiency operation.
