ETA1470

High Efficiency Synchronous Step-Down Converter

ETA1470 Features

* Wide Input Range: 4.5V-18V

* High Efficiency PFM mode at light load

* Capable of Delivering 2A

* No External Compensation Needed

* Current Mode Control

* Thermal Shutdown and UVLO

* Excellent Load and Line Transient Response

* Available in FCTSOT23-6 Package APPLICA

ETA1470 General Description

ETA1470 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A of output current. With a fixed switching frequency of 500KHz, this current mode PWM controlled converter allows the use of small external components, such as cera.

ETA1470 Datasheet (1.15 MB)

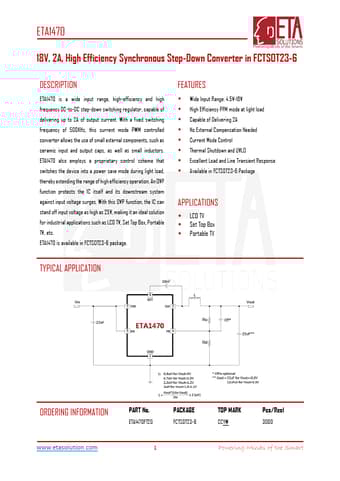

Preview of ETA1470 PDF

Datasheet Details

Part number:

ETA1470

Manufacturer:

ETA

File Size:

1.15 MB

Description:

High efficiency synchronous step-down converter.
