ETA1471

28V/3A High Efficiency Synchronous Step-Down Converter

ETA1471 Features

* 28V Input Standoff Voltage

* High Efficiency PFM mode at light load

* Capable of Delivering 3A

* No External Compensation Needed

* Current Mode Control

* Thermal Shutdown and UVLO

* Excellent Load and Line Transient Response

* FCTSOT23-6 and ESOP8 Package APPLICATIO

ETA1471 General Description

ETA1471 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. With a fixed switching frequency of 500KHz, this current mode PWM controlled converter allows the use of small external components, such as cera.

ETA1471 Datasheet (723.39 KB)

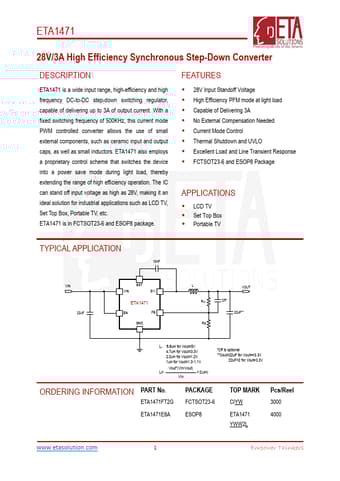

Preview of ETA1471 PDF

Datasheet Details

Part number:

ETA1471

Manufacturer:

ETA

File Size:

723.39 KB

Description:

28v/3a high efficiency synchronous step-down converter.
