ETA1486

18V High Efficiency Synchronous Step-Down Converter

ETA

ETA1486 Features

* Wide Input Operating Range from 4.5V to 18V

* High Efficiency: Up to 95% at Light Load

* Capable of Delivering 4A

* No External Schottky Diode Needed

* Inductor Short Circuit Protection

* Current Mode control

* 0.923V Reference for Low Output voltages

* Logic Contro

ETA1486 General Description

The ETA1486 is a wide input range, high-efficiency, DC-toDC step-down switching regulator, capable of delivering up to 4A of output current. Current mode PWM control allows the use of small external components, such as ceramic input and output caps, as well as small inductors, while still providing .

ETA1486 Datasheet (449.03 KB)

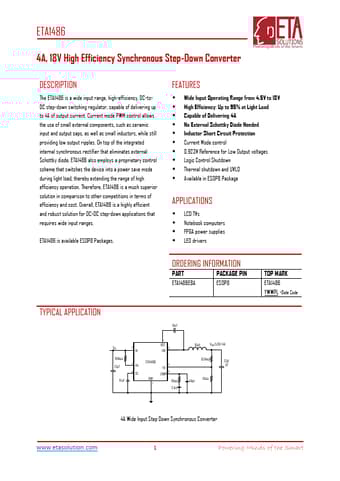

ETA1486 Datasheet Preview — Preview of ETA1486 PDF

Datasheet Details

Part number:

ETA1486

Manufacturer:

ETA

File Size:

449.03 KB

Description:

18v high efficiency synchronous step-down converter.
