ETA4056 - 1.2A/16V Fully Integrated Linear Charger

Description

ETA4056 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger.

Its compact package with minimum external components requirement makes the ETA4056 ideal for portable applications.

Features

  • 16V input standoff voltage.
  • 4.2V charge termination voltage.
  • 2.9V trickle charge threshold.
  • Charge current programmable, up to 1.2A.
  • 250nA BAT current when no charging.
  • Soft-start limits in-rush current.
  • ESOP8 / DFN2x2-8 / DFN2x3-8 / SOT23-6.

📥 Download Datasheet

Datasheet Details

Part number ETA4056
Manufacturer ETA
File Size 1.15 MB
Description 1.2A/16V Fully Integrated Linear Charger
Datasheet download datasheet ETA4056 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ETA1483 18V High Efficiency Synchronous Step-Down Converter ETA solutions
ETA1485 18V High Efficiency Synchronous Step-Down Converter ETA solutions

Other Datasheets by ETA

Part Number Description
ETA40561 1.2A/16V Fully Integrated Linear Charger
ETA40563 1.2A/16V Fully Integrated Linear Charger
ETA4050 1A Fully Integrated Linear Charger
ETA4051 1A Fully Integrated Linear Charger
ETA4052 Linear Charger

Full PDF Text Transcription

Click to expand full text

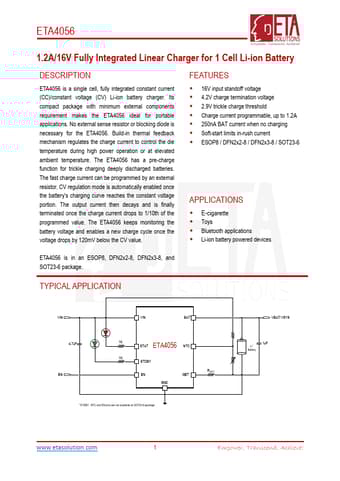

ETA4056 1.2A/16V Fully Integrated Linear Charger for 1 Cell Li-ion Battery DESCRIPTION ETA4056 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA4056 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA4056. Build-in thermal feedback mechanism regulates the charge current to control the die temperature during high power operation or at elevated ambient temperature. The ETA4056 has a pre-charge function for trickle charging deeply discharged batteries. The fast charge current can be programmed by an external resistor.
