ETA9720

1.2A Switching Charger

ETA9720 Features

* Bi-Directional Power conversion with Single Inductor

* Automatic Mode Switching

* Switching Charger

* 5V Synchronous Boost

* Up to 96% Efficiency

* Up to 1.2A Max charging current and 1.2A discharging

* No-Battery detection

* No External Sense resistor

* 4 LEDs

ETA9720 General Description

ETA9720 is a switching Li-Ion battery charger capable of delivering up to 1.2A of charging current to the battery and also capable of delivering up to 5V/1.2A in boost operation, with high efficiency in both charging mode and boost mode. It also includes a fuel gauge system for power indication. For.

ETA9720 Datasheet (470.02 KB)

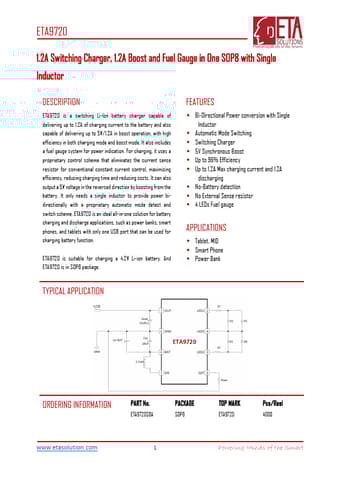

Preview of ETA9720 PDF

Datasheet Details

Part number:

ETA9720

Manufacturer:

ETA

File Size:

470.02 KB

Description:

1.2a switching charger.
