ETA9741

2.4A Boost and Fuel Gauge

ETA9741 Features

* Bi-Directional Power conversion with Single Inductor

* Automatic Mode Switching

* Switching Charger

* 5V Synchronous Boost

* Up to 96% Efficiency

* 2A charging current and 2.4A discharging

* No-Battery detection

* No External Sense resistor

* 4 LEDs Fuel gauge

ETA9741 General Description

ETA9741 is a switching Li-Ion battery charger capable of delivering 2A of charging current to the battery and also capable of delivering up to 5V/2.4A in boost operation, with high efficiency in both charging mode and boost mode. It also includes a fuel gauge system for power indication. For chargin.

ETA9741 Datasheet (707.27 KB)

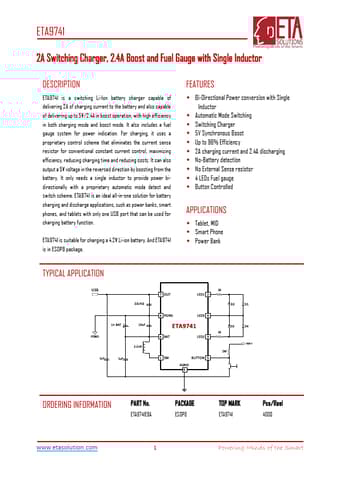

Preview of ETA9741 PDF

Datasheet Details

Part number:

ETA9741

Manufacturer:

ETA

File Size:

707.27 KB

Description:

2.4a boost and fuel gauge.
