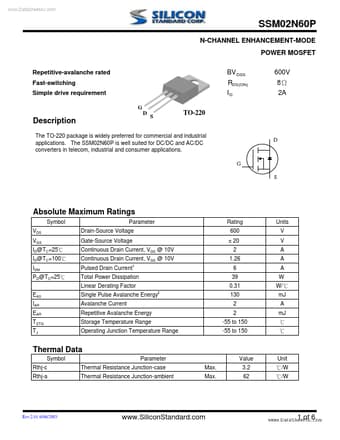

02N60P
Description
The TO-220 package is widely preferred for mercial and industrial applications. The SSM02N60P is well suited for DC/DC and AC/DC converters in tele, industrial and consumer applications. G
Absolute Maximum Ratings
Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ EAS IAR EAR TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current
Rating 600 ± 20 2 1.26 6 39 0.31
Units V V A A A W W/ ℃ m J A m J ℃ ℃
Total Power Dissipation Linear Derating Factor Single Pulse Avalanche Energy Avalanche Current Repetitive Avalanche Energy Storage Temperature Range Operating Junction Temperature Range
130 2 2 -55 to 150 -55 to 150
Thermal Data
Symbol Rthj-c Rthj-a Parameter Thermal Resistance Junction-case Thermal Resistance Junction-ambient Max. Max. Value 3.2 62 Unit ℃/W ℃/W
Rev.2.01 6/06/2003
.Silicon Standard.
1 of 6
..
SSM02N60P
Electrical Characteristics @ T j=25o C...
