1N6616 Datasheet - ETC

1N6616 Rectifiers

400 V - 1,000 V Rectifiers 3.0 A Forward Current 70 ns Recovery Time AXIAL LEADED HERMETICALLY SEALED 1N6616 1N6617 1N6618 1N6619 3 ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Working Number Reverse Voltage (Vrwm) Average Rectified Current (Io) Reverse Current @ Vrwm (Ir) Forward Voltage 1 Cycle Repetitive Reverse Surge Surge Recovery Current Current Time tp=8.3ms (3) (Ifsm) (Ifrm) (Trr) 25°C Amps 25°C Amps 25°C ns Thermal Impedance Junction Cap. @50VDC @ 1kHZ (Cj) 25°C pF (Vf) 25°C .

1N6616 Datasheet (100.94 KB)

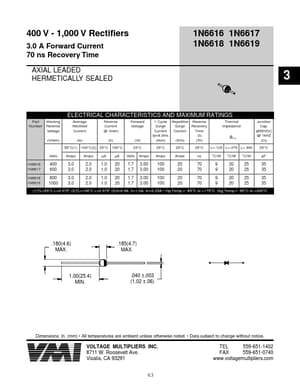

Preview of 1N6616 PDF
1N6616 Datasheet Preview Page 2

Datasheet Details

Part number:

1N6616

Manufacturer:

ETC

File Size:

100.94 KB

Description:

Rectifiers.
