2211-05-301 Datasheet (ETC)

2211-05-301, Reed Relays

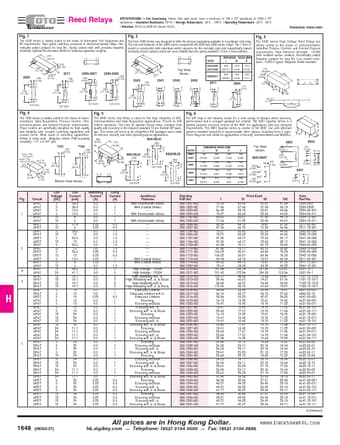

www.DataSheet4U.com Reed Relays Fig.

1 SPECIFICATIONS: Life Expectancy: Varies with each series from a minimum of 100 x 106 operations to 1000 x 106 operations Insulation Resistance: 1012Ω Storage Temperature: -35°C ~ 100°C Operating Temperature: -20°C ~ 85°C Vibration: 20 G’s to 2000 Hz; Shock: 50 G’s Dimensions: inches (mm) Fig.

2 The Coto 2300 Series was designed to offer the densest packaging available in a multipole reed relay.

The size a

2211-05-301 Features

* With Electrostatic Shield With Coaxial Shield

* With Electrostatic Shield

* With Coaxial Shield With Coaxial Shield

* High Voltage - 7500V High Voltag
