| Part number | 2211-150A, 221 |
|---|---|
| Manufacturer | ETC |
| File Size | 42.38 KB |
| Description | FIXEDDIPDELAYLINE |
| Datasheet |
 221-1.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2211-150A, 221. Please refer to the document for exact specifications by model. |

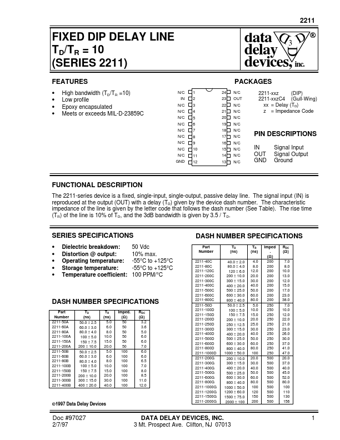

IN OUT GND Signal Input Signal Output Ground FUNCTIONAL DESCRIPTION The 2211-series device is a fixed, single-input, single-output, passive delay line.The signal input (IN) is reproduced at the output (OUT) with a delay (TD) given by the device dash number.The characteristic impedance of the line is given by the letter code that follows the dash number (See Table).The rise time (TR) of the line is 10% of TD, and the 3dB bandwidth is given by 3.5 / TD.SERIES SPECIFICATIONS
