2211 FIXEDDIPDELAYLINE

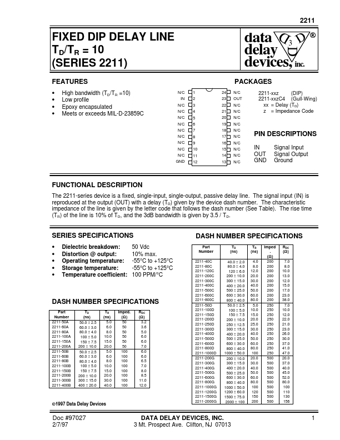

IN OUT GND Signal Input Signal Output Ground FUNCTIONAL DESCRIPTION The 2211-series device is a fixed, single-input, single-output, passive delay line. The signal input (IN) is reproduced at the output (OUT) with a delay (TD) given by the device dash number. The characteristic impedance of the lin.

2211 Features

* High bandwidth (TD/TR =10) Low profile Epoxy encapsulated Meets or exceeds MIL-D-23859C N/C IN N/C N/C N/C N/C N/C N/C N/C N/C N/C GND 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 N/C OUT N/C N/C N/C N/C N/C N/C N/C N/C N/C N/C data 3 ® dela
