2214-120C

20-TAPDIPDELAYLINETD/TR=10(SERIES2214)

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Lapp Group 2214120 (CX100) Tray Cable, 12 Cond, 14AWG, Braided Foiled, 100ft, Black, OLFLEX Tray II Series RS 0 1 units
$1258.58

2214-120C Datasheet (51.61 KB)

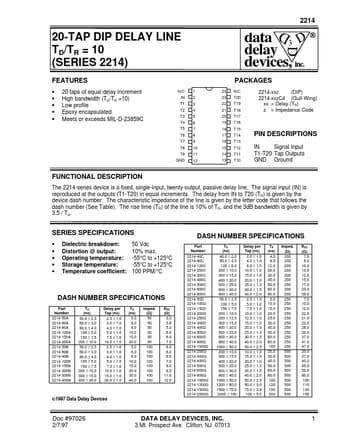

Preview of 2214-120C PDF

Datasheet Details

Part number:

2214-120C

Manufacturer:

ETC

File Size:

51.61 KB

Description:

20-tapdipdelaylinetd/tr=10(series2214).

2214-120C Features

* 20 taps of equal delay increment High bandwidth (TD/TR =10) Low profile Epoxy encapsulated Meets or exceeds MIL-D-23859C N/C IN T1 T2 T3 T4 T5 T6 T7 T8 T9 GND 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 N/C T20 T19 T18 T17 T16 T15

2214-120C General Description

IN Signal Input T1-T20 Tap Outputs GND Ground FUNCTIONAL DESCRIPTION The 2214-series device is a fixed, single-input, twenty-output, passive delay line. The signal input (IN) is reproduced at the outputs (T1-T20) in equal increments. The delay from IN to T20 (TD) is given by the device dash number.
