2214-60B 20-TAPDIPDELAYLINETD/TR=10(SERIES2214)

IN Signal Input T1-T20 Tap Outputs GND Ground FUNCTIONAL DESCRIPTION The 2214-series device is a fixed, single-input, twenty-output, passive delay line. The signal input (IN) is reproduced at the outputs (T1-T20) in equal increments. The delay from IN to T20 (TD) is given by the device dash number.

2214-60B Features

* 20 taps of equal delay increment High bandwidth (TD/TR =10) Low profile Epoxy encapsulated Meets or exceeds MIL-D-23859C N/C IN T1 T2 T3 T4 T5 T6 T7 T8 T9 GND 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 N/C T20 T19 T18 T17 T16 T15

221-4.pdf

This datasheet PDF includes multiple part numbers: 2214-60B, 221. Please refer to the document for exact specifications by model.

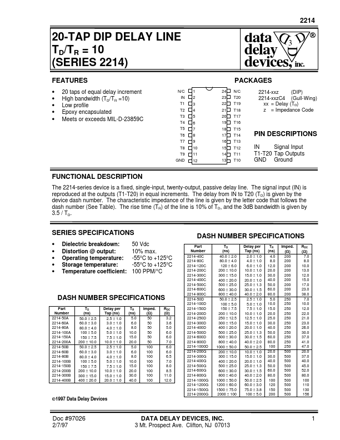

2214-60B Datasheet Preview Page 2 2214-60B Datasheet Preview Page 3
