24C256, 262/144-bit 2-WIRE SERIAL CMOS EEPROM

IS24C256 262,144-bit 2-WIRE SERIAL CMOS EEPROM .
FEATURES. Organization:. 32K-bit x 8-bit. 64-Byte Page Write Buffer. Two-Wire Serial Interface. Bi-direct.

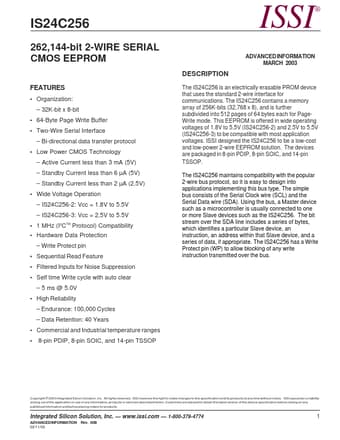

datasheet Preview Page 1 from Datasheet4u.com

24C256_ETC.pdf

24C256 Datasheet Preview — Preview of 24C256 PDF

Datasheet Details

Part number:

24C256

Manufacturer:

ETC

File Size:

51.93 KB

Description:

262/144-bit 2-WIRE SERIAL CMOS EEPROM

Features

* Organization:
* 32K-bit x 8-bit
* 64-Byte Page Write Buffer
* Two-Wire Serial Interface
* Bi-directional data transfer protocol
* Low Power CMOS Technology
* Active Current less than 3 mA (5V)
* Standby Current less than 6 µA (5V)

Applications

* implementing this bus type. The simple bus consists of the Serial Clock wire (SCL) and the Serial Data wire (SDA). Using the bus, a Master device such as a microcontroller is usually connected to one or more Slave devices such as the IS24C256. The bit stream over the SDA line includes a series of by
