2B22 Datasheet - ETC

Isolated Voltage-to-Current Converter

2B22 Features

* Wide Input Range: 0 to +1V to 0 to +10V Standard Output Range: 4 to 20mA High CMV Input/Output Isolation: 1500V dc Continuous Low Nonlinearity: 0.05% max, 2B22L Low Span Drift: 0.005%/°C max, 2B22L Single Supply: +14V to +32V Meets IEEE Std 472: Transient Protection (SWC) Meets ISA Std 50.1: Isolate

2B22 General Description

Model 2B22 is a high performance, compact voltage-to-current converter offering 1500V dc input to output isolation in interfacing standard process signals. The input stage of the model 2B22 is single resistor programmable to accept voltage ranges from 0 to +1V to 0 to +10V. The isolated output curre.

2B22 Datasheet (63.63 KB)

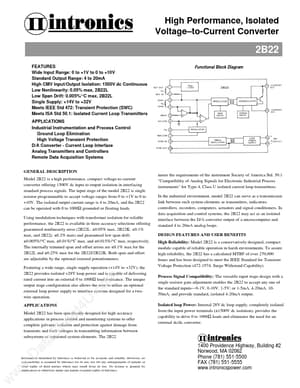

Preview of 2B22 PDF

Datasheet Details

Part number:

2B22

Manufacturer:

ETC

File Size:

63.63 KB

Description:

Isolated voltage-to-current converter.
