2N6406 - 2A POWER TRANSISTORS

2N6406 Description

2N6406,2N6407 PNP (SILICON) 2N6408, 2N6409 NPN COMPLEMENTARY PLASTIC SILICON ANNULAR POWER TRANSISTORS * ..designed for low power audio amplifie.

2N6406 Applications

* Collector-Einhter Sustaining Voltage VCEO(sus) = 60 Vdc - 2N6406, 2N6408 = 80 Vdc - 2N6407, 2N6409
* DC Current Gain hFE = 30 (Min) @ IC'= 0.5 Adc = 12 (Min) @. IC= 1.5 Adc
* Current-Gain - 8andwidth Product - tr = 50 MHz (Min) @ IC = 100 mAdc
* Pin Compatible With

📥 Download Datasheet

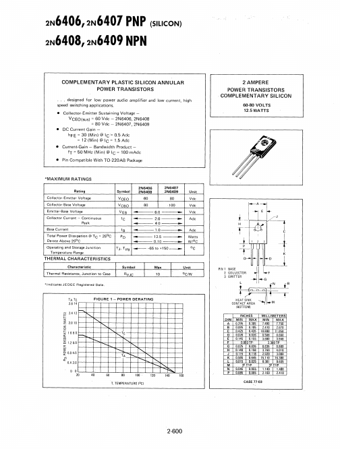

Preview of 2N6406 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N6406
Manufacturer
ETC
File Size
344.59 KB
Datasheet
2N6406-ETC.pdf
Description
2A POWER TRANSISTORS
