2SK3752-01R - N-CHANNEL SILICON POWER MOSFET

Datasheet Summary

Features

  • High speed switching No secondary breadown Avalanche-proof Low on-resistance Low driving power.

📥 Download Datasheet

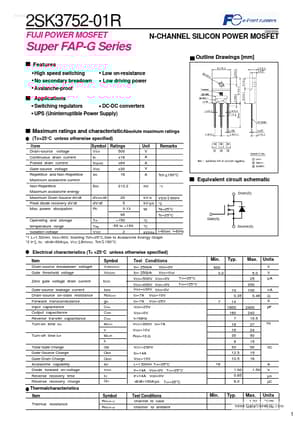

Datasheet preview – 2SK3752-01R

Datasheet Details

Part number 2SK3752-01R
Manufacturer ETC
File Size 145.13 KB
Description N-CHANNEL SILICON POWER MOSFET
Datasheet download datasheet 2SK3752-01R Datasheet
Additional preview pages of the 2SK3752-01R datasheet.

📁 Similar Datasheet

  • 2SK375 - N-Channel MOSFET (Hitachi Semiconductor)
  • 2SK3754 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK3755 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3755 - SWITCHING N-CHANNEL POWER MOSFET (NEC)
  • 2SK3756 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK3757 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK3758 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK3759 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • 2SK3759 - N-Channel MOSFET (Toshiba Semiconductor)
  • 2SK375L - N-Channel MOSFET Transistor (Inchange Semiconductor)
Other Datasheets by ETC

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 2SK3752-01R FUJI POWER MOSFET 200309 N-CHANNEL SILICON POWER MOSFET Outline Drawings [mm] Super FAP-G Series Features High speed switching No secondary breadown Avalanche-proof Low on-resistance Low driving power Applications Switching regulators DC-DC converters UPS (Uninterruptible Power Supply) Maximum ratings and characteristicAbsolute maximum ratings (Tc=25°C unless otherwise specified) Item Drain-source voltage Continuous drain current Pulsed drain current Gate-source voltage Repetitive and Non-Repetitive Maximum avalanche current Non-Repetitive Maximum avalanche energy Maximum Drain-Source dV/dt Peak diode recovery dV/dt Max. power dissipation Symbol Ratings V DS 500 ID ±16 ID(puls] ±64 VGS ±30 IAS 16 EAS dV DS/dt dV/dt PD 212.2 20 5 3.
