34063A DC-TO-DC CONVERTER CONTROL CIRCUITS

34063A DC-TO-DC CONVERTER CONTROL CIRCUITS The 34063A is a monolithic control circuit containing the primary functions required for DC-to-DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. This series was specifically designed to be incorporated in Step-Down and Step-Up and Voltage-Inverting applications with a minimum number of external co.

34063A Features

* FUNCTIONAL BLOCK DIAGRAM

* Operation from 3.0 V to 40 V Input Low Standby Current Current Limiting Output Switch Current to 1.5 A Output Voltage Adjustable Frequency Operation to 100 kHz Precision 2% Reference MAXIMUM RATINGS Ratin

34063A Datasheet (115.98 KB)

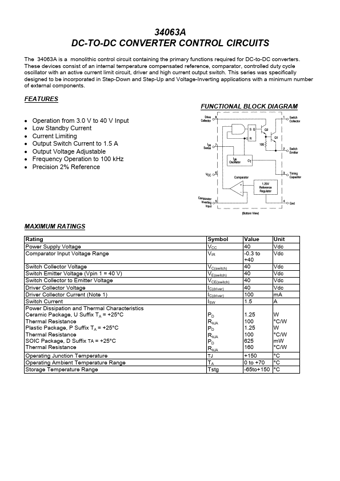

Preview of 34063A PDF
34063A Datasheet Preview Page 2

Datasheet Details

Part number:

34063A

Manufacturer:

ETC

File Size:

115.98 KB

Description:

Dc-to-dc converter control circuits.
