42S32200 - 512K Bits x 32 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM

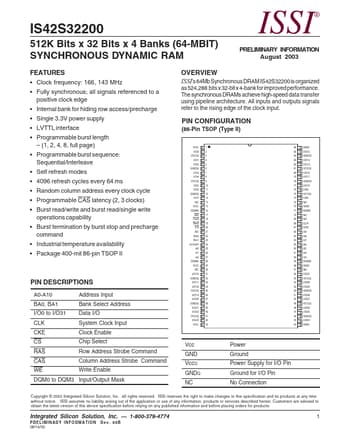

42S32200 Datasheet Preview — Preview of 42S32200 PDF

Datasheet Details

Part number	42S32200
Manufacturer	ETC
File Size	0.96 MB
Description	512K Bits x 32 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM
Datasheet	42S32200_ETC.pdf

42S32200 Product details

Description

A0-A10 BA0, BA1 I/O0 to I/O31 CLK CKE CS RAS CAS WE Address Input Bank Select Address Data I/O System Clock Input Clock Enable Chip Select Row Address Strobe Command Column Address Strobe Command Write Enable I/O19 I/O20 GNDQ I/O21 I/O22 VCCQ I/O23 VCC Vcc GND VccQ GNDQ NC Power Ground Power Supply for I/O Pin Ground for I/O Pin No Connection DQM0 to DQM3 Input/Output Mask Copyright © 2003 Integrated Silicon Solution, Inc.All rights reserved.ISSI reserves the right to make changes to thi

Features

Clock frequency: 166, 143 MHz.
Fully synchronous; all signals referenced to a positive clock edge.
Internal bank for hiding row access/precharge.
Single 3.3V power supply.
LVTTL interface.
Programmable burst length.
(1, 2, 4, 8, full page).
Programmable burst sequence: Sequential/Interleave.
Self refresh modes.
4096 refresh cycles every 64 ms.
Random column address every clock cycle.
Prog.
