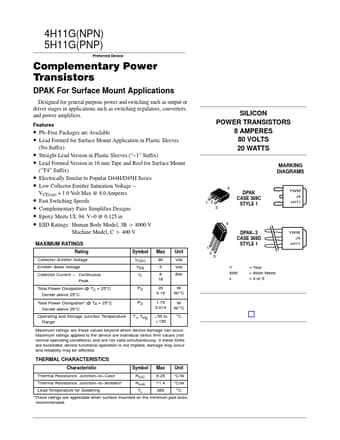

4H11G(NPN) 5H11G(PNP)
Preferred Device
Complementary Power Transistors
DPAK For Surface Mount Applications
Designed for general purpose power and switching such as output or driver stages in applications such as switching regulators, converters, and power amplifiers.
Features
• Pb−Free Packages are Available • Lead Formed for Surface Mount Application in Plastic Sleeves • Straight Lead Version in Plastic Sleeves (“−1” Suffix) • Lead Formed Version in 16 mm Tape and Reel for Surface Mount • • • • • •
(“T4” Suffix) Electrically Similar to Popular D44H/D45H Series Low Collector Emitter Saturation Voltage − VCE(sat) = 1.0 Volt Max @ 8.0 Amperes Fast Switching Speeds Complementary Pairs Simplifies Designs Epoxy Meets UL 94, V−0 @ 0.
