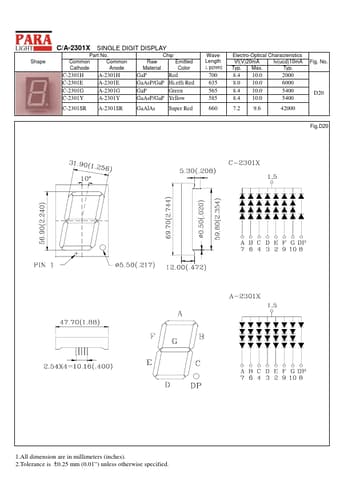

C/A-2301X SINGLE DIGIT DISPLAY Shape Part No. Common Common Cathode Anode Chip Raw Material Emitted Color Wave Length λp(nm) Electro-Optical Characteristics Vf(V)20mA Iv(ucd)10mA Typ. Max. Typ. Fig. No. C-2301H C-2301E C-2301G C-2301Y C-2301SR A-2301H A-2301E A-2301G A-2301Y A-2301SR GaP GaAsP/GaP GaP GaAsP/GaP GaAlAs Red Hi.effi Red Green Yellow Super Red 700 635 565 585 660 8.4 8.0 8.4 8.4 7.2 10.0 10.0 10.0 10.0 9.6 2000 6000 5400 5400 42000 D20 Fig.D20 1.All dimension are in milli.
