A-2308X - ALPHA-NUMERIC DISPLAY

Datasheet Details

Part number	A-2308X
Manufacturer	ETC
File Size	87.25 KB
Description	ALPHA-NUMERIC DISPLAY
Datasheet	A-2308X Datasheet
Additional preview pages of the A-2308X datasheet.

📁 Similar Datasheet

A-20-LC-xx - IC Sockets (Assmann Electronics)
A-2049-002 - PLC Components (Premo)
A-2049-005 - PLC Components (Premo)
A-2049-007 - PLC Components (Premo)
A-209R - Stereo Amplifier (Pioneer)
A-22-LC-xx - IC Sockets (Assmann Electronics)
A-24-LC-xx - IC Sockets (Assmann Electronics)
A-24W-K - MINIATURE RELAY (Fujitsu)
A-259X - InsulKrimp Snap Plug (Molex Electronics)
A-28-LC-xx - IC Sockets (Assmann Electronics)

Other Datasheets by ETC

A-2308E - ALPHA-NUMERIC DISPLAY
A-2308G - ALPHA-NUMERIC DISPLAY
A-2308H - ALPHA-NUMERIC DISPLAY
A-2308SR - ALPHA-NUMERIC DISPLAY
A-2308Y - ALPHA-NUMERIC DISPLAY
A-2301E - SINGLE DIGIT DISPLAY
A-2301G - SINGLE DIGIT DISPLAY
A-2301H - SINGLE DIGIT DISPLAY

Full PDF Text Transcription

Click to expand full text

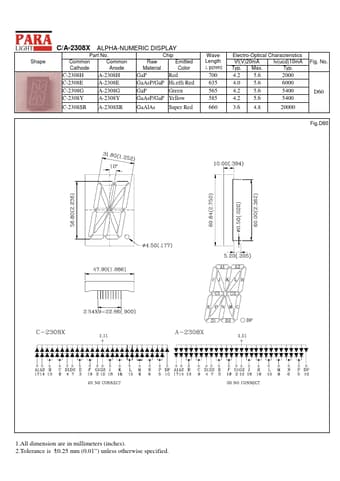

C/A-2308X ALPHA-NUMERIC DISPLAY Shape Part No. Common Common Cathode Anode Chip Raw Material Emitted Color Wave Length λp(nm) Electro-Optical Characteristics Vf(V)20mA Iv(ucd)10mA Typ. Max. Typ. Fig. No. C-2308H C-2308E C-2308G C-2308Y C-2308SR A-2308H A-2308E A-2308G A-2308Y A-2308SR GaP GaAsP/GaP GaP GaAsP/GaP GaAlAs Red Hi.effi Red Green Yellow Super Red 700 635 565 585 660 4.2 4.0 4.2 4.2 3.6 5.6 5.6 5.6 5.6 4.8 2000 6000 5400 5400 20000 D60 Fig.D60 1.All dimension are in millimeters (inches). 2.Tolerance is ±0.25 mm (0.01”) unless otherwise specified.
