A1252WR-S

1.25mm pitch wire to board connector

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Analog Devices Inc ADP2301AUJZ-R7 IC REG BUCK ADJ 1.2A TSOT6 DigiKey 3000 3000 units
$1.26

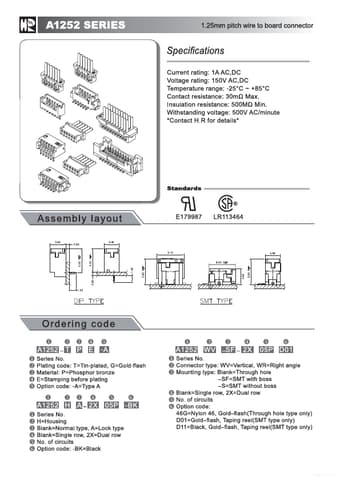

A1252WR-S Datasheet (1.67 MB)

Preview of A1252WR-S PDF

Datasheet Details

Part number:

A1252WR-S

Manufacturer:

ETC

File Size:

1.67 MB

Description:

1.25mm pitch wire to board connector.

A1252WR-S Features

* 1.2 A maximum load current ±2% output accuracy over temperature range Wide input voltage range: 3.0 V to 20 V 700 kHz (ADP2300) or 1.4 MHz (ADP2301) switching frequency options High efficiency up to 91% Current-mode control architecture Output voltage from 0.8 V to 0.85 × VIN Automatic PFM/PWM mode

A1252WR-S General Description

The ADP2300/ADP2301 are compact, constant-frequency, current-mode, step-down dc-to-dc regulators with integrated power MOSFET. The ADP2300/ADP2301 devices run from input voltages of 3.0 V to 20 V, making them suitable for a wide range of applications. A precise, low voltage internal reference makes .
