AC1008 - 5 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER

Datasheet Details

Part number	AC1008
Manufacturer	ETC
File Size	142.00 KB
Description	5 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER
Datasheet	AC1008 Datasheet
Additional preview pages of the AC1008 datasheet.

📁 Similar Datasheet

AC100 - NF Triode (TELEFUNKEN)
AC1005 - 5 Amp Current Transformer (talema)
AC100X - 100 Watt Open Frame AC-DC Modules (Intronics)
AC10 - Wirewound Resistors (Vishay)
AC10 - Axial Coated Inductors (Allied Components International)
AC10-100K-RC - Axial Coated Inductors (Allied Components International)
AC10-101K-RC - Axial Coated Inductors (Allied Components International)
AC10-102K-RC - Axial Coated Inductors (Allied Components International)
AC10-120K-RC - Axial Coated Inductors (Allied Components International)
AC10-121K-RC - Axial Coated Inductors (Allied Components International)

Other Datasheets by ETC

AC1019 - 10 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER
AC101L - 10 / 100 BASE-TX SINGLE-PHY TRANSCEIVER
AC101L-PB01-R - 10 / 100 BASE-TX SINGLE-PHY TRANSCEIVER
AC1122 - Li-ion battery charging chip
AC1501 - PWM Buck DC/DC Converter
AC162A - 16 x 2 Line LCD

Full PDF Text Transcription

Click to expand full text

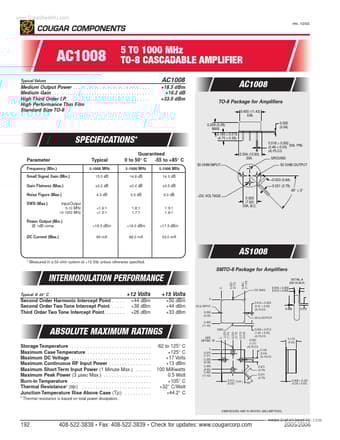

www.DataSheet4U.com rev. 10/00 AC1008 Typical Values 5 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER AC1008 +18.5 dBm +16.2 dB +33.0 dBm Medium Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Medium Gain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Third Order I.P. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Performance Thin Film Standard Size TO-8 AC1008 TO-8 Package for Amplifiers 0.450 (11.43) DIA. 0.208 (5.28) MAX. 0.025 (0.64) SPECIFICATIONS* Parameter Frequency (Min.) Small Signal Gain (Min.) Gain Flatness (Max.) Noise Figure (Max.) SWR (Max.) Input/Output 5-10 MHz 10-1000 MHz 0.185 ± 0.015 (4.70 ± 0.38) 0.018 ± 0.002 DIA. PIN (0.46 ± 0.05) (4) PLCS 0.504 (12.80) DIA.
