AC1019 - 10 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER

📥 Download Datasheet

Datasheet Details

Part number AC1019
Manufacturer Unknown Manufacturer
File Size 141.41 KB
Description 10 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER
Datasheet download datasheet AC1019 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AC101 NF Triode TELEFUNKEN
AC101-QF 10/100 BASE - TX SINGLE-CHANNEL ALTI PHY TRANSCEIVER Altima
AC101-TF 10/100 BASE - TX SINGLE-CHANNEL ALTI PHY TRANSCEIVER Altima
AC10 Wirewound Resistors Vishay
AC10 Axial Coated Inductors Allied Components International

Other Datasheets by Unknown Manufacturer

Part Number Description
AC101L 10 / 100 BASE-TX SINGLE-PHY TRANSCEIVER
AC101L-PB01-R 10 / 100 BASE-TX SINGLE-PHY TRANSCEIVER
AC1008 5 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER
AC1122 Li-ion battery charging chip
AC1501 PWM Buck DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

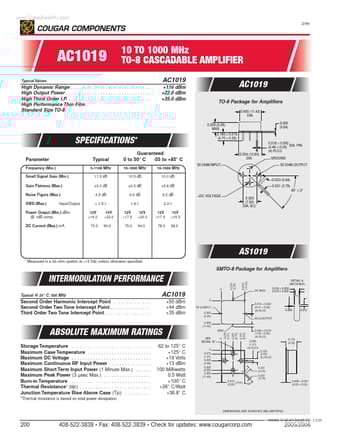

www.DataSheet4U.com 2/99 AC1019 Typical Values 10 TO 1000 MHz TO-8 CASCADABLE AMPLIFIER AC1019 +116 dBm +22.0 dBm +35.0 dBm High Dynamic Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Output Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Third Order I.P. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . High Performance Thin Film Standard Size TO-8 AC1019 TO-8 Package for Amplifiers 0.450 (11.43) DIA. 0.208 (5.28) MAX. 0.025 (0.64) SPECIFICATIONS* Parameter Frequency (Min.) Small Signal Gain (Min.) Gain Flatness (Max.) Noise Figure (Max.) SWR (Max.) Input/Output 0.185 ± 0.015 (4.70 ± 0.38) 0.018 ± 0.002 DIA. PIN (0.46 ± 0.05) (4) PLCS 0.504 (12.80) DIA. 50 OHM INPUT GROUND 50 OHM OUTPUT Typical 5-1100 MHz 11.5 dB ±0.
