AG12864A - 128 DOTS X 64 DOTS Display

AG12864A Description

CONTENTS AG12864A ( 128 DOTS X 64 DOTS ) .

AG12864A Features

* BUILT-IN CONTROLLER (KS0107 OR EQUIVALENT) +5 V POWER SUPPLY 1/64 DUTY CYCLE 8-BIT PARALLEL INTERFACE 4.2 V LED FORWARD VOLTAGE MECHANICAL DATA ITEM Module Size (W x H x T) Viewing Area ( W x H ) Active Area ( W x H ) Dot Size ( W x H ) Dot Pitch ( W x H ) DIMENSIONS 93 x 70 x 8.8 ( 12.7 LED ) 72.

📥 Download Datasheet

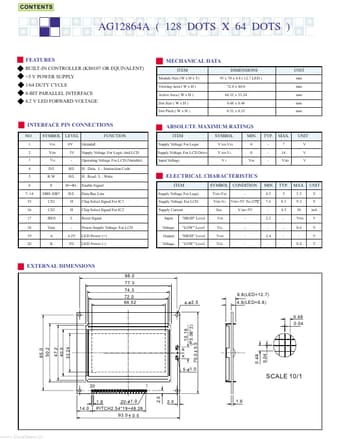

Preview of AG12864A PDF
datasheet Preview Page 2

Datasheet Details

Part number
AG12864A
Manufacturer
ETC
File Size
115.24 KB
Datasheet
AG12864A_ETC.pdf
Description
128 DOTS X 64 DOTS Display
