ALN2040 Datasheet, Amplifier, ETC

ALN2040 Features

  • Amplifier
  • 27 dB Gain at 2045 MHz
  • +20 dBm P1dB
  • +38 dBm Output IP3
  • 0.9 dB Noise Figure
  • 5 dBm WCDMA(4FA)
  • Operating at Single 5V Supply

PDF File Details

Part number:

ALN2040

Manufacturer:

ETC

File Size:

749.88kb

Download:

📄 Datasheet

Description:

Low noise amplifier.

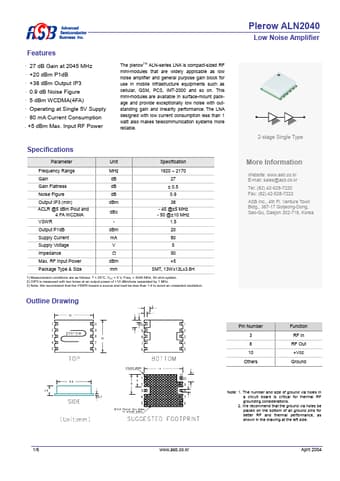

Datasheet Preview: ALN2040 📥 Download PDF (749.88kb)
Page 2 of ALN2040 Page 3 of ALN2040
