AM3301

Step-up DC/DC Converter

AM3301 Features

* Input Voltage: 1.1V~5.5V Internal MOSFET with high switch current up to 3A 25µA Quiescent (Switch-off) Supply Current Shutdown Mode Supply Current:

AM3301 General Description

The GAM13231001 is a compact, high efficiency, and low voltage step-up DC/DC converter including an error amplifier, ramp generator, comparator, switch pass element and driver in which providing a stable and high efficient operation over a wide range of load currents. It operates in stable waveforms.

AM3301 Datasheet (190.29 KB)

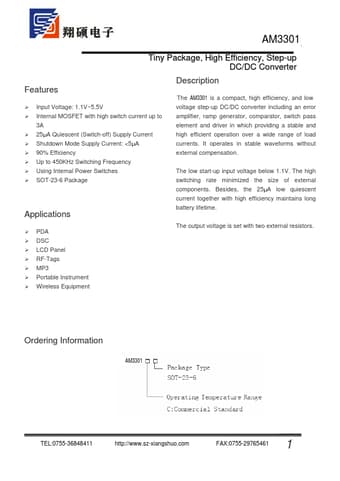

Preview of AM3301 PDF

Datasheet Details

Part number:

AM3301

Manufacturer:

ETC

File Size:

190.29 KB

Description:

Step-up dc/dc converter.
