AMC0802A

CONTOUR DRAWING & BLOCK DIAGRAM

AMC0802A General Description

NC Data Bus Data Bus Data Bus Data Bus Read/Write Enable Power Supply for LCD Register Select Power Supply : 0V Power Supply : +5V Anode/Cathode for backlight ELECTRICAL CHARACTERISTICS(Ta=25° C) SYMBOL CONDITION MIN. TYP. MAX. UNIT ITEM Supply Voltage(logic) Vdd 5.5 4.5 5.0 V Supply Current(logic).

AMC0802A Datasheet (55.84 KB)

Preview of AMC0802A PDF

Datasheet Details

Part number:

AMC0802A

Manufacturer:

ETC

File Size:

55.84 KB

Description:

Contour drawing & block diagram.

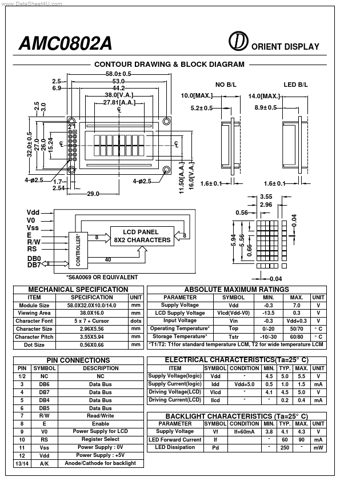

www.DataSheet4U.com AMC0802A CONTOUR DRAWING & BLOCK DIAGRAM 2.5 6.9 2.5 3.0 58.0± 0.5 53.0 44.2 38.0[V.A.] 27.81[A.A.] C L ORIENT DISPLAY NO B/L 1.
