AN80T05LF Datasheet - ETC

AN80T05LF Regulator

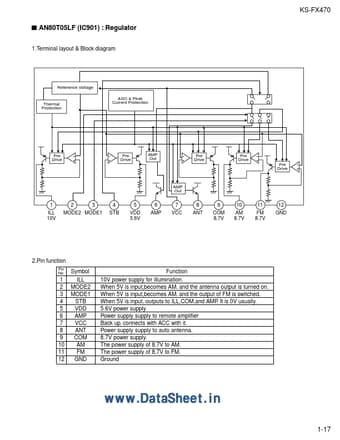

KS-FX470 AN80T05LF (IC901) : Regulator 1.Terminal layout & Block diagram Reference Voltage ASO & Peak Current Protection Thermal Protection Pre Drive Pre Drive AMP Out Pre Drive Pre Drive Pre Drive AMP Out 1 ILL 10V 2 3 4 STB 5 VDD 5.6V 6 AMP 7 VCC 8 ANT 9 COM 8.7V 10 AM 8.7V 11 FM 8.7V 12 GND MODE2 MODE1 2.Pin function Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 Symbol ILL MODE2 MODE1 STB VDD AMP VCC ANT COM AM FM GND Function 10V power supply for illumination. When 5V is input,.

AN80T05LF Datasheet (18.35 KB)

AN80T05LF Datasheet Preview — Preview of AN80T05LF PDF

Datasheet Details

Part number:

AN80T05LF

Manufacturer:

ETC

File Size:

18.35 KB

Description:

Regulator.
