ATS266

High Voltage Hall Effect Latch

ATS266 Features

* - On-chip Hall plate - Operating voltage: 4V~28V - Output current: 400mA(Continuous) - Reverse protection diode only for chip reverse power connecting (Note) - Output protection Zener breakdown Vz=56V(Typ) - Package: SIP-4L (Note) Protection diode only exists at power pin(1,4) output, not including

ATS266 General Description

ATS266 is an integrated Hall sensor with output drivers designed for electronic commutation of brush-less DC motor applications. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hyster.

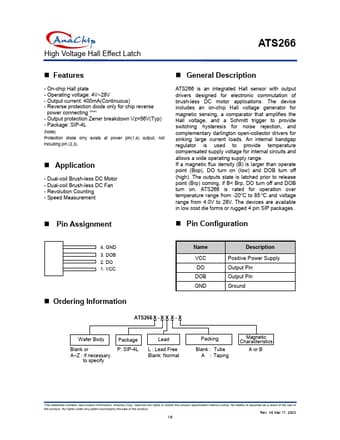

ATS266 Datasheet (170.84 KB)

Preview of ATS266 PDF

Datasheet Details

Part number:

ATS266

Manufacturer:

ETC

File Size:

170.84 KB

Description:

High voltage hall effect latch.
