B82799C0224N001 Chokes for Data and Signal Lines

B82799C0224N001 Description

Data sheets for SMT types Chokes for Data and Signal Lines CAN Bus Choke, EIA 1812 Rated voltage 42 Vac/80 Vdc Rated current 100 to 300 mA Rated indu.

B82799C0224N001 Features

* High performance Case flame-retardant as per UL 94 V-0 Suitable for reflow soldering and conductive adhesion Operation up to 150°C (for LR

B82799C0224N001 Applications

* B82799-C: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
* B82799-S: Suppression of asymmetrical (by LR) and symmetrical interference (by LS) coupled in on lines. The high-frequency portions of the symmetrical data s

📥 Download Datasheet

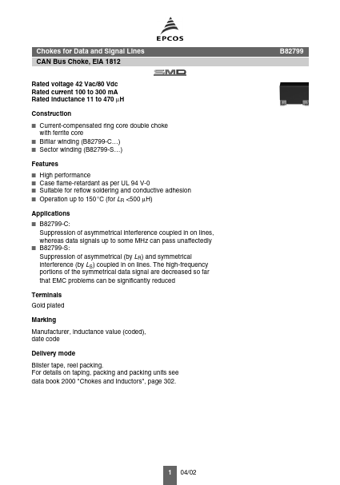

B82799C0224N001 Datasheet Preview — Preview of B82799C0224N001 PDF

Datasheet Details

Part number: B82799C0224N001
Manufacturer: ETC
File Size: 81.34 KB
Datasheet: B82799C0224N001_ETC.pdf
Description: Chokes for Data and Signal Lines
