BH7823AFVM Datasheet, Driver, ETC

BH7823AFVM Features

  • Driver 1) BTL monaural audio power amplifier 2) High power 500mW/8 /BTL output 3) Wide operating voltage range 4) For active/shutdown MODE 5) Built-in anti-pop circuit/thermal shutdown circuit

PDF File Details

Part number:

BH7823AFVM

Manufacturer:

ETC

File Size:

68.93kb

Download:

📄 Datasheet

Description:

Audio driver. BH7823AFVM is an audio driver IC developed for mobile audio appliances such as cellular phones. This driver has achieved low voltage

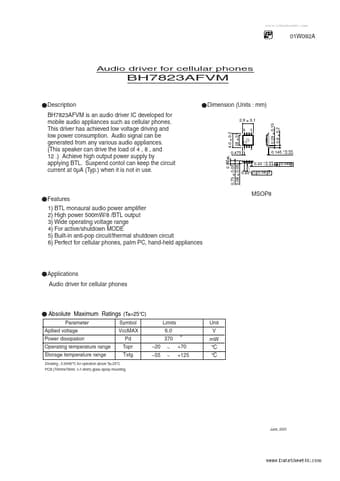

Datasheet Preview: BH7823AFVM 📥 Download PDF (68.93kb)
Page 2 of BH7823AFVM

BH7823AFVM Application

  • Applications Audio driver for cellular phones Absolute Maximum Ratings (Ta=25°C) Parameter Apllied voltage Power dissipation Operating temperature
