BL118xxx (BL118 Series) Performance Characteristics

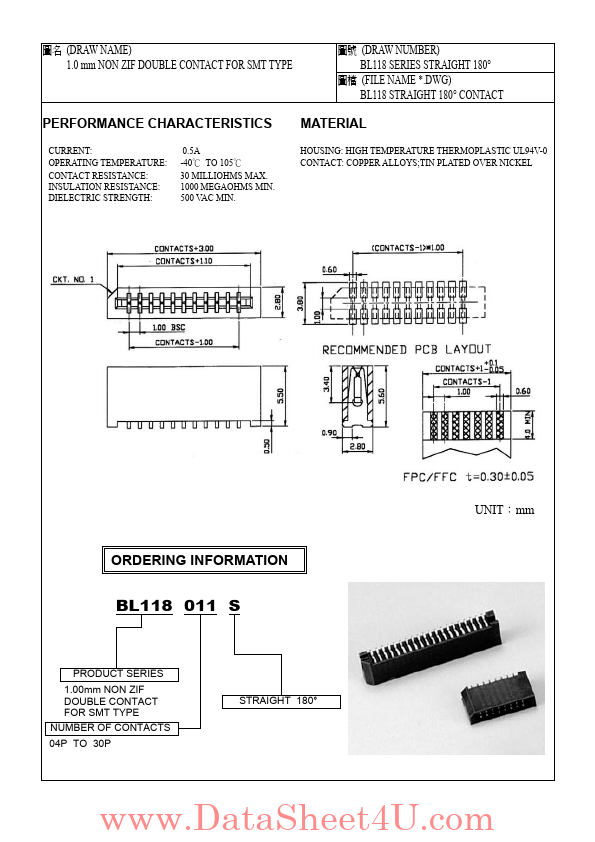

(DRAW NAME) 1.0 mm NON ZIF DOUBLE CONTACT FOR SMT TYPE (DRAW NUMBER) BL118 SERIES STRAIGHT 180° (FILE NAME .DWG) BL118 STRAIGHT 180° CONTACT PERFORMANCE CHARACTERISTICS CURRENT: OPERATING TEMPERATURE: CONTACT RESISTANCE: INSULATION RESISTANCE: DIELECTRIC STRENGTH: 0.5A -40℃ TO 105℃ 30 MILLIOHMS MAX. 1000 MEGAOHMS MIN. 500 VAC MIN. MATERIAL HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94V-0 CONTACT: COPPER ALLOYS;TIN PLATED OVER NICKEL UNIT：mm ORDERING INFORMATION BL118 011 S PRODUCT .

BL118_ETC.pdf

BL118xxx Datasheet Preview — This datasheet PDF includes multiple part numbers: BL118xxx, BL118. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BL118xxx, BL118

Manufacturer:

ETC

File Size:

243.96 KB

Description:

(bl118 series) performance characteristics.

Note:

This datasheet PDF includes multiple part numbers: BL118xxx, BL118.
Please refer to the document for exact specifications by model.
