BPS100 Standby Supply Module

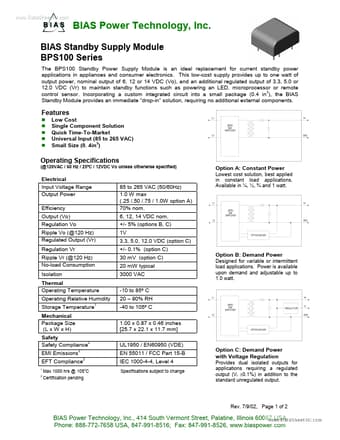

www.DataSheet4U.com BIAS Power Technology, Inc. BIAS Standby Supply Module BPS100 Series The BPS100 Standby Power Supply Module is an ideal replacement for current standby power applications in appliances and consumer electronics. This low-cost supply provides up to one watt of output power, nominal output of 6, 12 or 14 VDC (Vo), and an additional regulated output of 3.3, 5.0 or 12.0 VDC (Vr) to maintain standby functions such as powering an LED, microprocessor or remote 3 control sensor. Inc.

BPS100 Features

* Low Cost Single Component Solution Quick Time-To-Market Universal Input (85 to 265 VAC) 3 Small Size (0. 4in ) Operating Specifications (@120VAC / 60 Hz / 25ºC / 12VDC Vo unless otherwise specified) Option A: Constant Power Lowest cost solution, best applied in constant load applications. Availabl
