C-3570X 1.2 INCH/ 5 X 7 DOT MATRIX DISPLAY

C/A-3570X 1.2 INCH, 5 X 7 DOT MATRIX DISPLAY Shape Part No. Common Common Cathode Anode Chip Raw Material Emitted Color Wave Length λp(nm) Electro-Optical Characteristics Vf(V)20mA Iv(ucd)10mA Typ. Max. Typ. Fig. No. C-3570H C-3570E C-3570G C-3570Y C-3570SR A-3570H A-3570E A-3570G A-3570Y A-3570SR GaP GaAsP/GaP GaP GaAsP/GaP GaAlAs Red Hi.effi Red Green Yellow Super Red 700 635 565 585 660 2.1 2.0 2.1 2.1 1.8 2.8 2.8 2.8 2.8 2.4 600 2800 2600 2600 8000 D85 Fig.D85 1.All dimension are .

C-3570X Datasheet (93.51 KB)

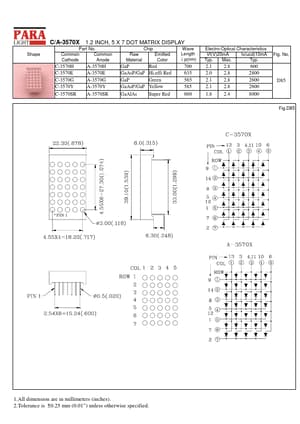

C-3570X Datasheet Preview — Preview of C-3570X PDF

Datasheet Details

Part number:

C-3570X

Manufacturer:

ETC

File Size:

93.51 KB

Description:

1.2 inch/ 5 x 7 dot matrix display.
