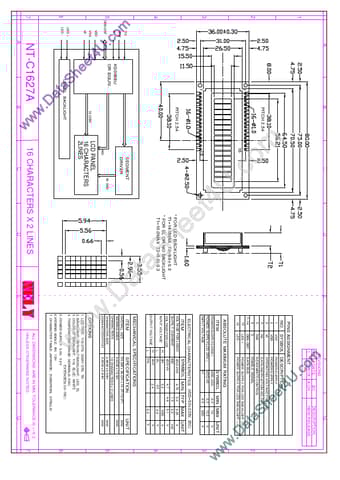

C1627A
DESCRIPTION
1 2 3 4 5 6 7--14 15 16
VSS VDD V0 RS R/W E DB0--DB7 LED + LED
- ABSOLUTE MAXIMUM RATING ITEM
1 16
POWER SUPPLY(LOGIC) POWER SUPPLY(LCD DRV.) INPUT VOLTAGE
ELECTRICAL CHARACTERISTICS (VDD=5.0±0.25V, 25C)
ITEM
PITCH 2.54
- FOR LED BACKLIGHT T1=14.0MAX T2=9.0±0.3
- FOR EL OR NO BACKLIGHT T1=10.0MAX T2=5.0±0.3
VOLTAGE FOR LOGIC SUPPLY CURRENT
VOLTAGE FOR LCD
INPUT VOLTAGE
OUTPUT VOLTAGE
MECHANICAL SPECIFICATIONS SEGMENT DRIVER ITEM m o .c U 4 t e e h S a at .D w w w
R/W
DB0-DB7 VDD VSS V0
KS0066U OR EQUIV.
40 SEG
40S
OVERALL SIZE VIEWING AREA CHARACTERS CHARACTER SIZE CHARACTER PITCH
LCD PANEL 16 CHARACTERS 2LINES
LED/EL BACKLIGHT
OPTIONS
LED +
- 1. LCD TYPE: Y/G STN; GRAY STN; TN 2. BACKLIGHT: WITHOUT BACKLIGHT; LED; EL 3. COLOR OF BACKLIGHT: Y/G; BLUE; WHITE 4. TEMPERATURE RANGE: NORMAL(0--50C) EXTENDED(-20--70C) 5. POWER SUPPLY: 5.0V; 3.0V 6.VIEWING ANGLE: 6H; 12H 7. CHARACTER TABLE: JAPANESE; EUROPEAN;...
